XTOOL X100 Pad2 key reprogram a 2004 Land Rover Discovery 3



Discovery 3 is supported by X100 PAD2/ X100 PAD2 Pro in key programming. Check the Land Rover IMMO function list as below.

Landrover Immobiliser Function List: 26.63
Automaker Model/Protocol System Function
LANDROVER Range rover(Sport) 2005-2009 Immobiliser 1.Program keys
LANDROVER Range rover(Sport) 2010-2015 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Range rover 2006-2009 Immobiliser 1.Program keys
LANDROVER Range rover 2010-2015 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Range rover 2010-2013 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Range rover 2014-2015 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Range rover (Evoque)-2013 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Range rover (Evoque) 2014-2015 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Discovery 3 Immobiliser 1.Program keys
LANDROVER Discovery 4 -2013 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Discovery 4 2014-2015 Smart key system 1.Add smart key
2.All smart key lost
LANDROVER Freelander Immobiliser 1.Program remotes
LANDROVER Freelander 2(-2012) Immobiliser 1.Smart key
LANDROVER Freelander 2(2012-) Smart key system 1.Add smart key

2.All smart key lost

It’s not difficult to do key programming, just do it as follows.

Connect X100 Pad2 key programmer to the vehicle via the main cable properly

Turn on the XTOOL tablet to operate

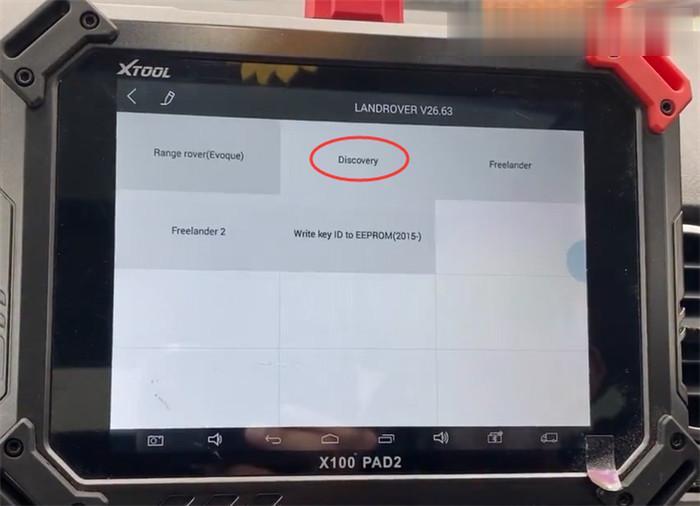

Go to “Immobilization”-> “LANDROVER”

Agree with the disclaimer

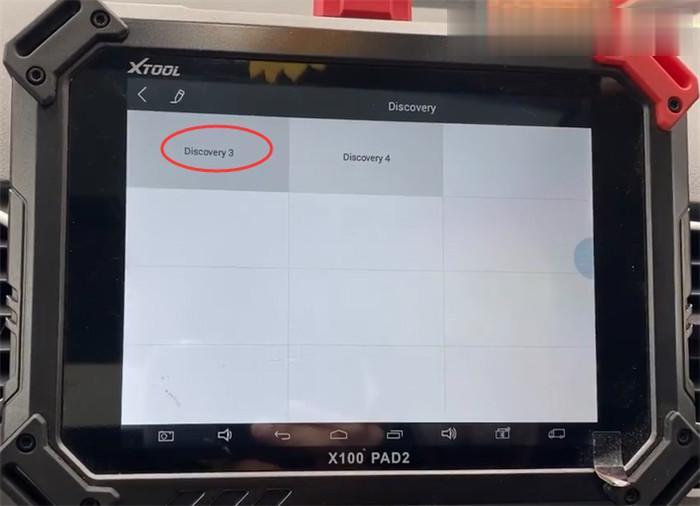

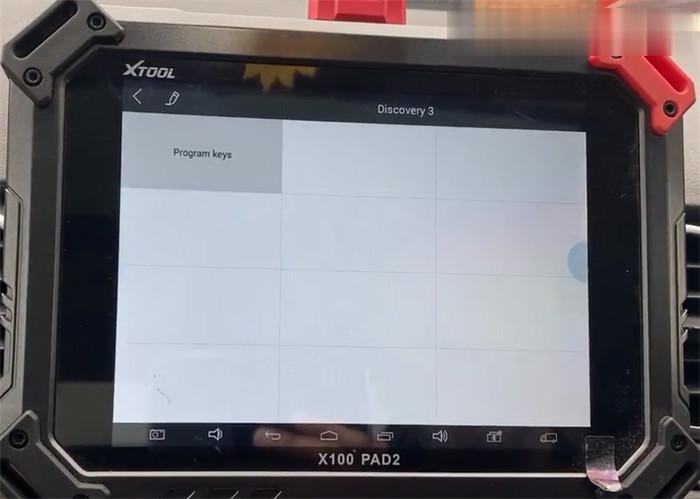

Select “Discovery”-> “Discovery 3”-> “Program keys”

Note: you need at least one programmed key.

Then follow the on-screen instructions to operate step by step.

Insert the working key into the ignition and no need to turn on

When it has been programmed successfully, remove it and insert the new key, do not switch ignition on

After the process is completed, test two keys

FYI…

Some customers have successfully tested on other Land Rover car models, also share here with you.

* LR Sport 2009 add Chinese remote key OK
* Ranger T6 2015 AKL, lishi for door lock and X100 pad2 for programming. 2mn done.
* land rover freelander 2 2012 add 1 key
* landrover freelander 2006 add remote it’s ok
* Ranger 2017 Hitag Pro: add key OK
* range rover sport 2012 add key ok
* Disco 4, add smart OK (Hitage Pro)
