Lonsdor K518POL Fiat Ducato 2008 ID46 Programming of the remote control

How to use Lonsdor K518S/K518ISE to program Fiat Ducato 2008 ID46 Key successfully Video:
This is original working Fiat Ducato 2008 ID46 key.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-1
Use the original key to turn on the ignition.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-2
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-3
Plug the Lonsdor K518S key programmer into Fiat car, tap “Immobilizieir -> Fiat -> Europe-> Ducato -> 2006-> 2012 (250) -> Backup EEPROM”.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-4
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-5
Downloading application.
Loading…
Please switch ignition ON.
Communication connecting, please wait…
Configuring system, please wait…
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-6
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-7
Please switch ignition switch off.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-8
Reading EEPROM data.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-9
Please enter the name of the file to be saved.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-10
Please make sure the input is correct! Ducato_2008_ID46.bin.
Backup success.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-11
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-12
If oil gauge’s indicator flashes, please cut off power supply or power off BCM for a few secs.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-13
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-14
Back to the menu to select “Make dealer key (46 & 48 chip).
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-15
Downloading application…
Loading…
Please select “46 chip key”, and put the new blank new into the slot of Lonsdor K518S.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-16
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-17
Select “PCF7946 (8PIN).
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-18

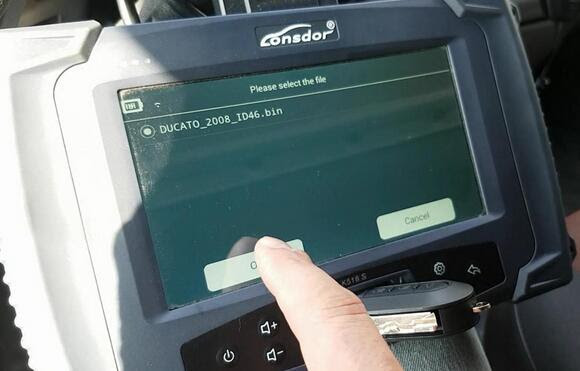

Select the file.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-19
Push the device key slot (to the right). Place the key to be programmed into key slot.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-20
Writing key data.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-21
Generate the dealer key and lock the key success.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-22
ID: B175412B.
Tap ” Program key”.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-23
Note: the working keys also need to be programmed, otherwise they will turn invalid.
The new key (to be programmed) must be dealer key or customized key.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-24
Please switch ignition ON.
Please input the pin.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-25
Program key successfully, take off the original key from the ignition and insert the new programmed key to turn on the ignition.
And test if the remote works.
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-26
That’s all! Lonsdor K518S Key Programmer can program Fiat Ducato 2008 ID46 Key perfectly.
Thanks
